Tunneller

A NEW FLEXIBILITY
IN SHUNT SURGERY
YOU DEFINE THE PATH

Tunneller
FEATURES
FUNCTIONALITY
Download
KONTAKT

FEATURES

  • Tunnelling instrument in eight variants for individual surgical requirements
  • Handle customizable to personal preference

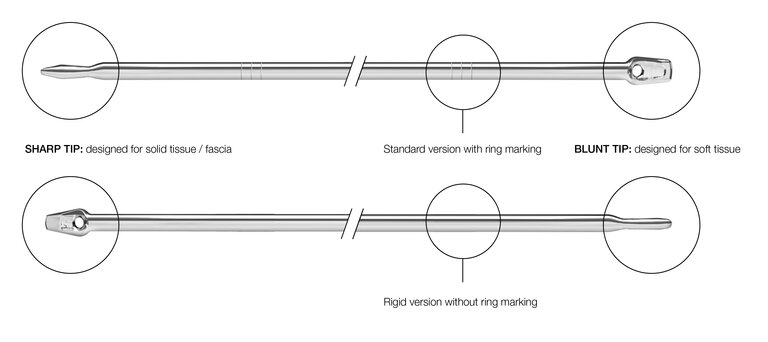

  • Each tunneller has a blunt and a sharp tip, which makes it adaptable to the tissue at hand
  • Designed for easy and fast (direct) catheter placement
  • Bi-directional approach possible: paraumbilical + retroauricular

FUNCTIONALITY

The tunneller is a neurosurgical instrument that assists in the simple and direct placement of the peritoneal catheter of a shunt system.

The tunneller comprises a tunnelling rod and a handle, which are detachable from each other and can be connected by the use of a safety mechanism. The rod is available in four different lengths (300, 450, 600 and 700 mm), each in two degrees of bendability (standard and rigid). This variety makes it possible to respond individually to the anatomical characteristics of the patients, such as body size and the condition of the tissue. In addition, the design of the tips allows an easy connection of the catheter for direct placement.

The ergonomically designed handle of the tunneller also offers flexibility in use. It can be held longitudinally or transversely; the adjustment according to personal preference is made easily and quickly by using the safety mechanism and is also possible intraoperatively. A click-feedback of the integrated mechanism after correct adjustment provides the desired reliability during tunnelling.

STEP 1

Longitudinal alignment

STEP 2

Press lever and remove shaft

STEP 3

Choose appropriate tip design and
handle alignment (here lateral)

STEP 4

Close upper handle part to lock shaft

Tunneller

Product downloads



Download Area
